Document to Zip Node

Combines one or more documents into a single ZIP archive, allowing downstream steps to treat them as a single file.

How It Works

1. Input Resolution: Uses $input (previous node output) and $secret (vault secrets).

2. Request / Processing:

   1. Resolves each documentId in the documents list.

   2. Fetches binary content from the declared source (conversation or storage).

   3. Streams files into an in-memory ZIP buffer (or temp file if size > 50 MB).

   4. Uploads the resulting archive to the selected outputStorage target.

   5. Emits the new zipDocumentId.

• Execution Model: Hybrid – small bundles run Blocking; large bundles automatically switch to Async. (No threshold control in config).

• Response Handling:

  • Success: Returns metadata for the new ZIP.

  • Failure: Emits statusCode >= 400 with a reason field describing the first failing document; partial bundles are discarded.

Configuration Schema

Field	Type	Required	Description
documents	array<object>	✅	List of input docs. Each item: { documentId, source, storageId? }
outputStorage	'conversation' | 'storage'	✅	Where to save the ZIP.
storagePath	string	Cond.	Required only when outputStorage='storage'.
zipFileName	string	Optional	Custom filename; defaults to bundle-<timestamp>.zip.

Output Schema

Field	Type	Always	Description
zipDocumentId	string	✅	Identifier of the generated ZIP.
storageType	string	✅	"conversation" or "storage".
storagePath	string	No	Present when storageType='storage'.
mimeType	string	✅	Always "application/zip".
statusCode	number	✅	HTTP-like status code (200 for Blocking, 400/500 for error).

Error Handling

Error	StatusCode	Notes
Missing document	404	reason indicates first missing ID.
Source unavailable	503	Storage service offline or time-out.
Bundle too large	413	Max combined size exceeded (hard cap).
Invalid configuration	400	Schema validation failed.
Internal processing error	500	Unexpected exception while zipping.

Single-Node Test API

For testing a node in isolation (e.g., via the UI "Test" button or a dedicated API), the following endpoint is used:

• Path: /skill-runtime/workflows/nodes/DocumentToZip/execute

• Method: POST

• Purpose: Execute one node in isolation.

• Request Body :

{

"nodeType": "DOCUMENT_TO_ZIP",

"config": { /* refer to configuration schema */ },

"input": { /* becomes $input */ }

}

Security Notes

• $secret may be used if external storage adapters require API keys; secrets are never logged.

• Binary streams are processed in temp storage that is wiped on completion.

• Only the resulting zipDocumentId is surfaced to downstream nodes; raw file paths are never exposed.

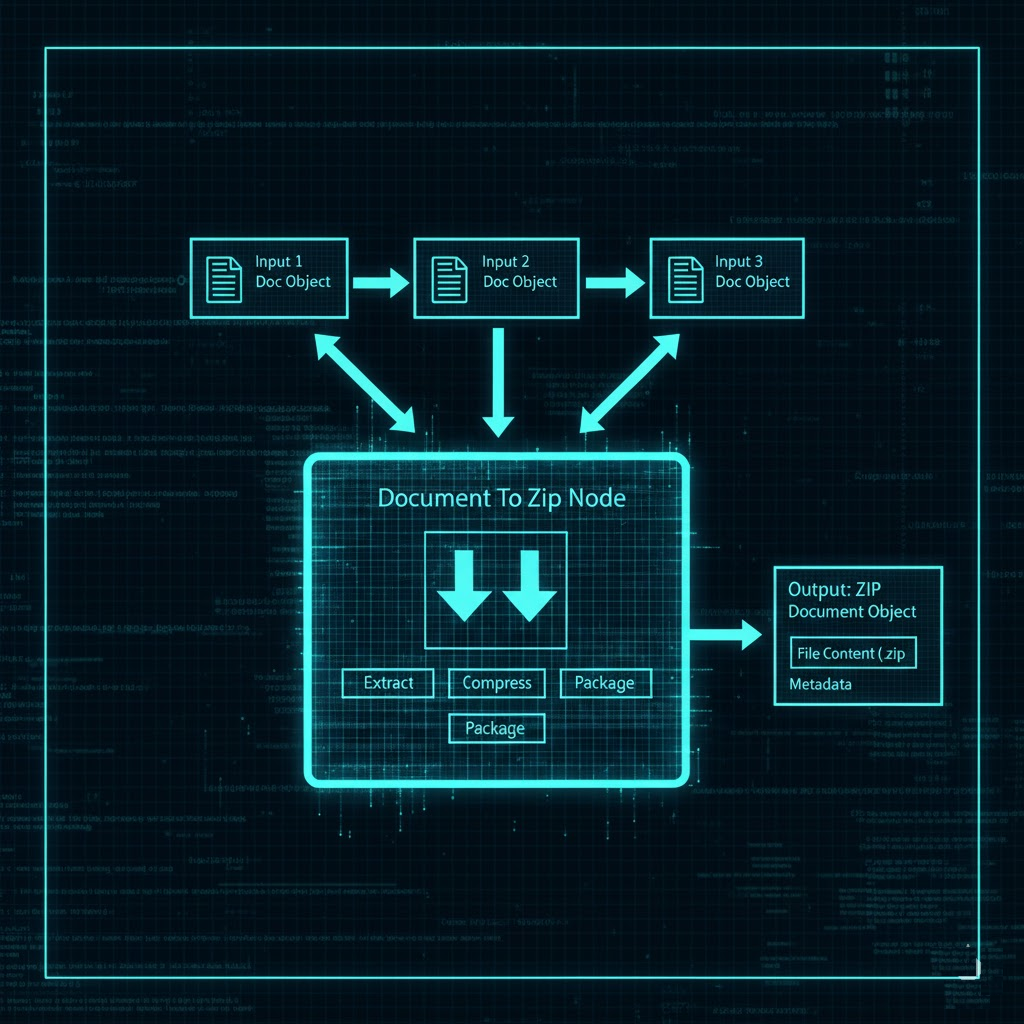

Document to Zip Node Processing Flow
