Document Delete Node

The Document Delete Node removes one or many documents in a single step, enabling bulk-cleaning of temporary or sensitive files.

How It Works

1. Input Resolution: Uses $input (previous node output) and $secret (vault secrets).

2. Request/Processing: Expects an array of document descriptors.

   1. Verifies ownership for source: "conversation" items; checks bucket ACLs for source: "storage".

   2. Redacts IDs in logs.

3. Execution Model: Blocking – returns only after all items are processed.

4. Response Handling:

   1. Collects a per-item result array (items[]), plus deletedCount and failedCount.

   2. If any delete fails, the node still returns 200 OK to let the workflow branch on partial success.

Configuration Schema

Field	Type	Required	Description
items	array	✅	List of documents to delete.

DocumentRef Schema (for items array)

Property	Type	Required	Notes
documentId	string	✅	ID returned by Upload or Fetch nodes.
source	conversation | storage	✅	Where the document resides.
storagePath	string | null	Cond.	Optional when source: "storage"; defaults to root directory.

Output Schema

Field	Type	Always	Description
deletedCount	number	✅	How many documents were successfully deleted.
failedCount	number	✅	How many deletions failed.
items	array	✅	Per-item status (order matches input).
statusCode	number	✅	Status per document (e.g., 200, 404, 403).

DeleteResultItem Schema (for items array)

Property	Type	Description
documentId	string	Echo of the input ID.
deleted	boolean	true if removed.
statusCode	number	Upstream response (204, 404, 403,...).
error	string | null	Error message if status = error.

Error Handling

Condition	Effect on Node	Per-item statusCode / error.code	Notes
Some items fail	207	4xx/5xx in each failed items[]	Workflow can branch on failedCount.
All items fail	400	4xx/5xx	deletedCount = 0, failedCount >= 1.
Success	200	204	deletedCount >= 1, failedCount = 0.
Invalid config shape	400		Node refuses to run.

Single-Node Test API

For testing a node in isolation (e.g., via the UI "Test" button or a dedicated API), the following endpoint is used:

• Path: /skill-runtime/workflows/nodes/DocumentDelete/execute

• Method: POST

• Purpose: Execute one node in isolation.

• Request Body :

{

"nodeType": "DOCUMENT_DELETE",

"config": { /* refer to configuration schema */ },

"input": { /* becomes $input */ }

}

Security Notes

• $secret bearer tokens are never logged.

• Document IDs and storage paths are redacted in logs.

• Node checks conversation ownership to block cross-tenant deletes.

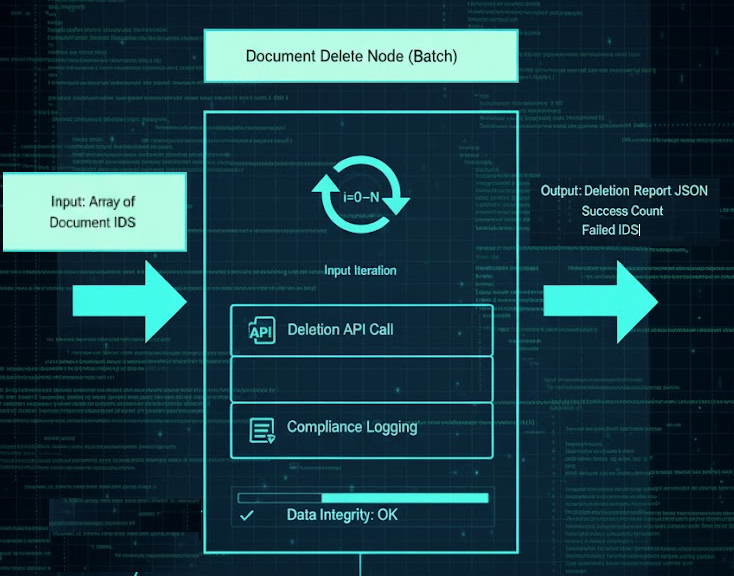

Document Delete Node Batch Processing
